PD 6662 : 2004 Grade 2 Radio System
Today’s alarm system needs more flexibility to cater for rapidly changing home and business environments. No longer is a purely wired system necessarily the best answer. The Scantronic Homelink 55 radio system lets you take advantage of the latest advances in narrow-band secure radio technology to fit an alarm system without disruption to your décor or the need to spend time trying to hide cables. Homelink 55 allows you to choose radio detectors that can be sited precisely where needed, with no unsightly cabling. A wide variety of suitable radio detectors covering most security requirements is available, including advanced smoke detectors to complete your family’s protection. You can even protect outbuildings, sheds, garages, caravans, vehicles and boats parked near the premises without having to worry about running cables back.
Homelink 55 also frees you from relying on fixed, often inconveniently situated, panic buttons as it enables small, portable radio units to be used anywhere in and around the premises. Typically, these portable units will operate inside most domestic and commercial buildings and the area immediately outside them, offering you personal protection even when you are relaxing in the garden or walking to your vehicle.
To ensure maximum security, the system checks the status of all its associated transmitters every 4 minutes to ensure optimum performance at all times. Scantronic’s 30 year’s experience in providing security radio systems has developed a unique dual diversity antenna system guaranteeing excellent radio reception with minimal dead-spots, even in the most hostile environments.
Operation is via attractive remote keypads, up to four on a system, using a 6-digit code or, to simplify operation and reduce further the possibility of user-error, a personal-encrypted proximity tag is also supplied. There is an optional key-fob transmitter that lets you set or unset the system by simply pressing the appropriate button, just like operating your car’s central locking system.
As well as an integral modem for alarm and service information, Homelink 55 has full remote upload/download capability allowing your installer to programme and perform routine service and diagnostic tests without having to visit your premises.
Technical Specification
| PD6662:2004 Compliance* |
Grade 2, Enviromental Class II |
| Zones |
16 fully supervised radio zones + 8 fully programmable wired zones (CC, with global tamper on panel, or 2 Wire FSL)
Zone attributes: Each zone can be programmed as one of the following types – personal attack, fire, normal alarm, final exit, 24 hour, entry route, ‘not used’ shock analyser (zone 1-4 only) technical alarm, key-switch, keybox, smoke detector, anti-mask, Forbikobler, AC fail, low battery, battery fault, power output fault, fault. The following attributes are also available:- chime, soak test, double knock, omit allowed, anti-mask. |
| Kit Supplied |

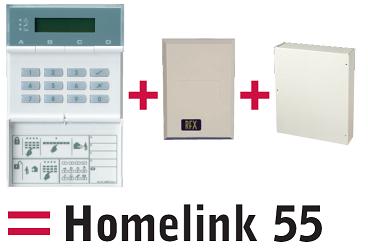

1 x blank end-station control panel, 9940 LCD keypad with one proximity tag, RFX16 radio expander |
| Keypads |
Accepts up to 4 x 9940 or 9930 remote keypads (or any combination) |
| Proximity Reader |
9940 keypad includes a proximity reader as standard |
| Display |
Full feature plain text LCD display, 2 x lines, 16 characters per line |
| Level Setting |
A = Full set. B, C, and D offer part set options |
| Partitions |
A, B, C & D buttons offer 4 x fully independent partitions, each with individual entry/exit timers |
| Event Log |
700 event log with date and time stamped, viewed or downloaded |
| Compliance |
PD6662:2004 Grade 2. Environmental Class II, ATS 2 |
| Keyswitch |
Key-switch zone type, full = A, part = B setting/unsetting, disarm and reset. |
| Codes |
50 x 4 or 6 digit user and/or proximity tags, 1 engineer code (6-digit codes must be used for PD6662:2004 Grade 2 systems) |
| Internal Sounder |
Accepts up to 2 x 16 ohm internal sounders, exit/entry tones via internal sounder with electronic volume control (A-Set in partition mode) |
| Outputs |
3 open collector output programmable as bell, exit/entry follow, armed lamp, set latch, shock reset, walk test (LED enable), ready lamp, 24 hour alarm, strobe, smoke reset, strobe when setting, siren test, pulsed set, pulsed unset, confirm, set complete, unset complete, system alarm, fire, PA, set fail, general fault, all fault |
| Remote Communications |
Multi-format alarm reporting via a built in communicator, 8 channel fast format, SIA I, II or III or Contact ID |
| Modem |
Built in CCITT V21 – 300 BAUD half duplex |
| Downloader |
Remote downloader facilities for programming, diagnostics and remote control using Cooper Security Multi-Product downloader software, Windows based, Secure Callback (with dynamic third call-back number), answerphone defeat option and unattended mode, manual call out |
| Remote Diagnostics & Servicing |
Designed to conform to the BSIA Remote Service COP, remote tests include read zone resistances (panel & expander), zone activity, RFX signal strength, PSU voltages, current, battery charge current, battery load test, remotely trigger output tests, communications test, operate system with a virtual keypad |
| Power Supply |
Conforms to EN50131-6 Type A power supply, rated power output 580mA |
| Battery |
Stand by battery 12 volt, 7Ah rechargeable lead acid, gel type |
| Secondary Communications Outputs |
Any wire-in secondary communication device via 8 fully programmable outputs |
| Radio Section |
Operating frequency 868.6625MHz at 20kHz bandwidth. I-ETS 300 220. CE tested to I-ETS 300 339 (draft standard) |
| Compliance |
Product is tested to 1995/5/EC R&TTE Directive |
| Set Up Display |
7-segment LED. Visible with case open |
| Receiver |
Integral AE2 dual diversity antennae and receiver |
| Transmitter Learn |
Auto recognition of type and auto configuration via LED (16,000,000 permutations) |
| Supervision Interval |
4 minutes |
| Rolling Code Capability |
Super-encrypted, rolling code for use with remote keyfob operation (complies to PD6662:2004 and DD243:2005) Suitable rolling code keyfobs Scantronic 722rEUR-00 and 727rEUR-00 |
| Field Strength Indication |
Via internal 7-segment display |
| Input Power Output |
Quiescent current 55mA 4-way connection to main keypad bus of any version of Scantronic 9751, 9752, 9851, 9853 |
| Connectors |
4-way connection to main keypad bus |
| Dimensions |
Control panel (H x W x D): 240 x 240 x 90 mm, 9940 keypad: 115 x 115 x 25mm, Radio expander: 185 x 130 x 30mm |
| Weight |
Control panel = 3.3 kg 9940 keypad = 205gm radio expander = 380 g |
| Temperature Range |
Environmental Class II -10 C to 55 C @ 75% RH |
|
