HOMELINK 75
You want to look after what’s important in life: your family, your home and yourself. With the wire-free Homelink 75 you’re already off to a good start. It offers you some of the most advanced security technology available from one of the world’s leading manufacturers.
With nearly 30 years’ experience, Scantronic builds state-of-the-art security systems which incorporate intelligence as standard. Intelligence that makes Homelink 75 more than a security system. Using mobile phone technology, Homelink 75 combines communication and security to bring you a system that not only protects what you care about, but tells you what you need to know – when you need to know it.
Whatever you’re doing, whether at home, work or abroad, Homelink 75 gives you complete reassurance that your premises and all its contents are secure.
Key Features
General
- Four independent partitions, each of which can be full set or part set
- Provides alarms for intruder, fire, technical, PA and social care
- Built-in siren

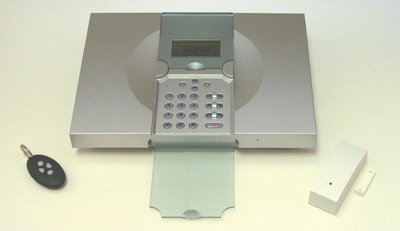

- Supplied as a kit with PIR, door contact, telecommand and prox tag.
Inputs:
- 32 fully supervised (to EN50131-3) radio input zones
- 2 FSL wired input zones
Outputs
- 32 programmable radio outputs
- 2 Wired relay outputs
User Interface
- Built in keypad and graphic display
- Voice prompts (can be disabled)
- Multi-function remote operation fobs
- Integral prox reader
- Remote control by telephone (mobile or land line)
- Built-in microphone
- Loud-speaking facility
- Voice memo recording facility
Communications
- Integral digital communicator offering SCANCOM, Fast-Format, SIA l, ll & lll Extended, and Contact ID formats
- Plug on adaptors for Internet Protocol over Ethernet or GPRS
- Plug on adaptors for GSM (mobile phone)
- Integral social alarm function with Tunstall and SCANCOM Fast-Format communications and half-duplex voice communication
- Integral speech dialler with one 12s home message and up to four consecutive messages each 8s long with listening-in and talk back facility
Radio
- Scantronic AE2 dual diversity narrow-band 868 MHz radio receiver
- Integral radio field-strength meter for accurate detector siting
- Supervision and jamming detection on all detectors
- Radio learning of detectors and outputs
Power
- NiMH batteries giving at least 12 hours standby operation
- Mains power from standard outlet (built-in power supply)
Service/Maintenance
- Full upload/download and remote servicing facility
- 350 event log
- Programmable from a PC or laptop using a built-in USB port
Technical Specifications
| Electrical |
|
| Mains Power Supply |
230VAC, 200mA max, +10%/- 15% |
| Standby Time |
More than 12 Hours |
| |
|
| Physical |
|
| Dimensions |
285mm W, 206mm H, 45mm D |
| Weight |
1.060kg (without standby battery) |
|
